Industrial arm / Cobot
Z-110
by Rychiger
Specifications
- Power (v)
- 400
- Power kw
- 5-20
- Output per (hr)
- 7200
- Output per (min)
- 120
- Unit height (mm)
- 300
- Compressed air bar
- 6
- Compressed air l (min)
- 100
- Processing stations
- 10
- Outer unit diameter (mm)
- 100
Overview

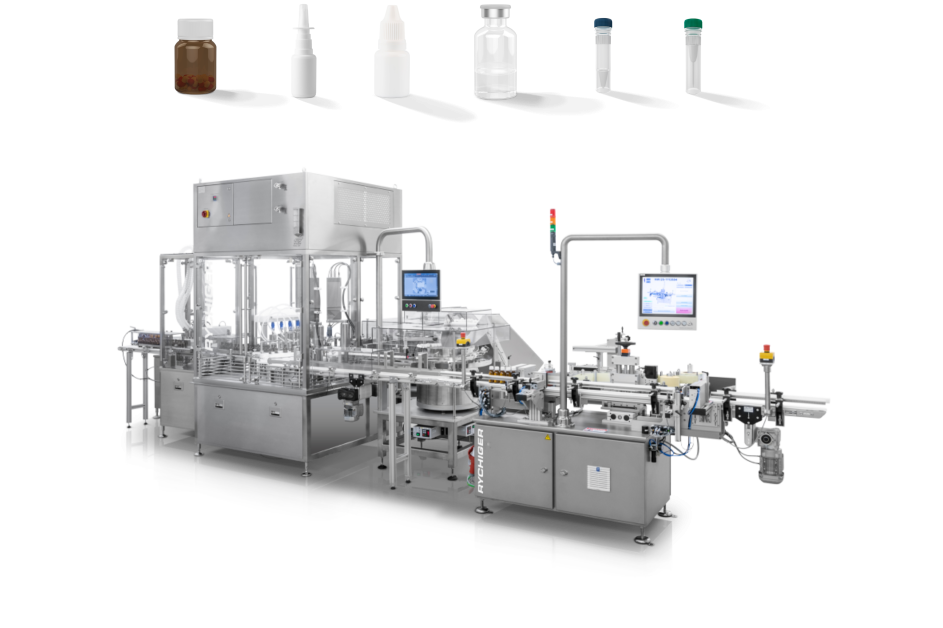

The Z-110 platform is designed for filling both sterile and non-sterile products in Pharma, Consumer Health, or Diagnostic sectors. It features a compact modular construction, handles up to 120 units/min (7,200/h), and accommodates containers up to 100 mm diameter and 300 mm height. The machine includes 10 processing stations, tool-free format change, and supports volumetric, rotary piston, or peristaltic pumps. It offers GMP documentation, cGMP hygienic design, and optional LAF or oRABS.
Key features
- ▸Fills up to 120 units/min (7,200 units/h)
- ▸Handles containers up to 100 mm diameter, 300 mm height
- ▸10 processing stations around central star wheel
- ▸Tool-free, recipe-driven format change
- ▸Hygienic design with FDA-compliant materials
- ▸Supports volumetric, rotary piston, peristaltic pumps
- ▸Optional LAF, oRABS, gassing, weighing, inspection
- ▸GMP documentation and cGMP hygienic design
- ▸OPC UA connectivity, batch protocols, audit trail
- ▸Multi-format: plastic, aluminum, glass containers
