Industrial arm / Cobot
FS 910
by Rychiger
Specifications
- Lanes
- 12
- Width
- 4000 mm
- Height
- 2500 mm
- Length
- 12000 mm
- Weight
- 4500 kg
- Nitrogen bar
- 5
- Output per (hr)
- 46800
- Cycles per (min)
- 65
- Output per (min)
- 780
- Rated power kw
- 15
- Unit height (mm)
- 60
- Capsules per (min)
- 1440
- Connected load (v)
- 3 x 400 V + Pe / 50 Hz
- Compressed air bar
- 5
- Cooling water l (min)
- 5
- Nitrogen flow nm3 h
- 80
- Outer unit diameter (mm)
- 37
- Compressed air flow nm3 h
- 55
Overview

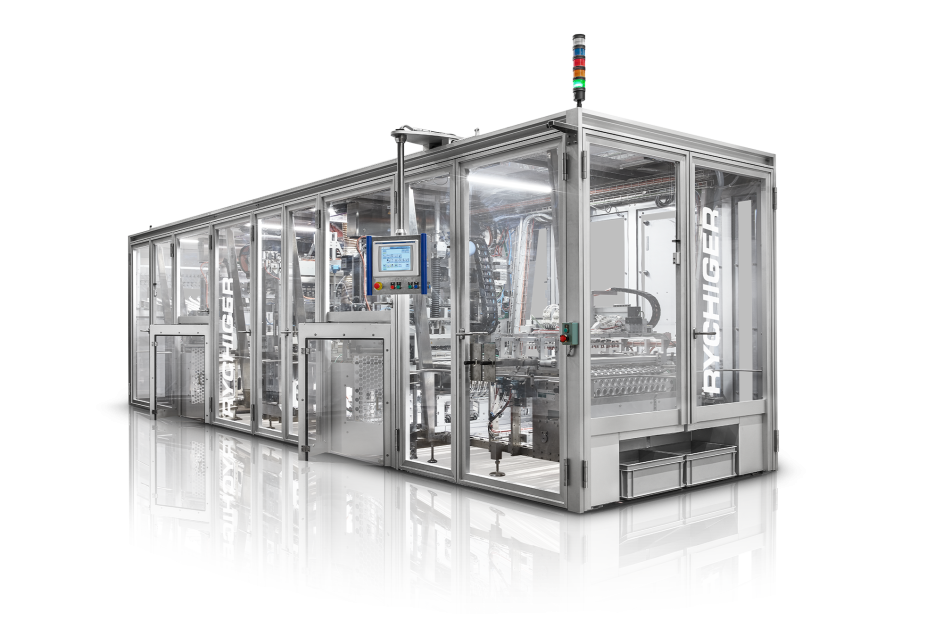

The FS 910 is a high-precision coffee capsule filling machine from Rychiger. It produces up to 1,440 capsules per minute for Nespresso, Dolce Gusto, K-Cup and compatibles. It handles plastic, aluminum, and paper materials. Features include diagonal foil punching reducing waste by 30%, dry cleaning access, and upgradability with extra stations. It operates at 65 cycles/min with 12 lanes. Machine dimensions: 12 x 4 x 2.5 m, weight 4,500–13,000 kg.
Key features
- ▸Produces up to 1,440 tea or coffee capsules per minute
- ▸Handles Nespresso, Dolce Gusto, K-Cup and compatible capsules
- ▸Diagonal foil punching reduces foil waste by up to 30%
- ▸Dry cleaning access for easy maintenance
- ▸Upgradable with additional stations and integrated secondary packaging units
- ▸Filling and sealing in shielded gas atmosphere minimizes residual oxygen
