Industrial arm / Cobot
LT 20
by Rychiger
Specifications
- Lanes
- 1
- Weight
- 600 kg
- Output per (hr)
- 2400
- Output per (min)
- 40
- Rated power kw
- 20
- Connected load (v)
- 3 x 400 VAC + N + PE / 50 Hz
- Compressed air flow nl (min)
- 15
- Compressed air pressure bar
- 5
Overview

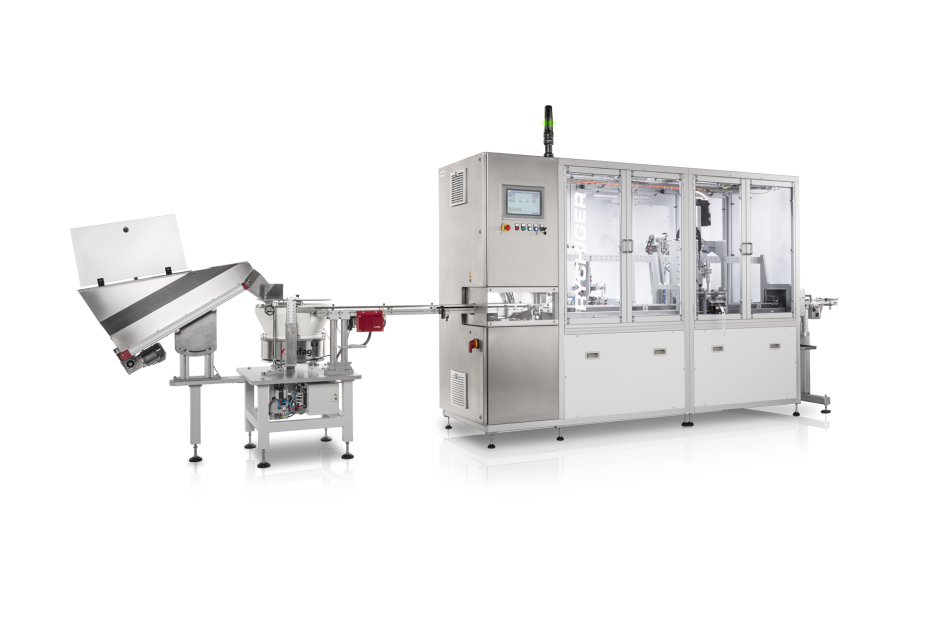

The LT 20 is a compact, stand-alone linear transport machine for filling and sealing multi-well cassettes or cartridges in molecular diagnostic, clinical chemistry, and immuno-haematology blood grouping ID gel card applications. It features a modular linear conveyor platform with in-feed, filling, sealing, and labelling options for manual or automated operation. Output ranges from 5-40 cartridges/min depending on configuration. Suitable for pilot manufacturing and small-medium production runs.
Key features
- ▸Small footprint, stand-alone compact design
- ▸Linear conveyor platform with modular in-feed, filling, sealing, labelling options
- ▸Output up to 40 cartridges/min (ID cards) or 5-20/min (IVD)
- ▸Modular construction allows linear extension for additional processes
- ▸Suitable for pilot manufacturing and small-medium production (10-40 cartridges/min)
- ▸Handles lyophilized products, liquids, gels, parts, or powders
- ▸Optimized for reliability and cleanability (ISO 8, GMP)
- ▸Manual or automated operation
