Industrial arm / Cobot

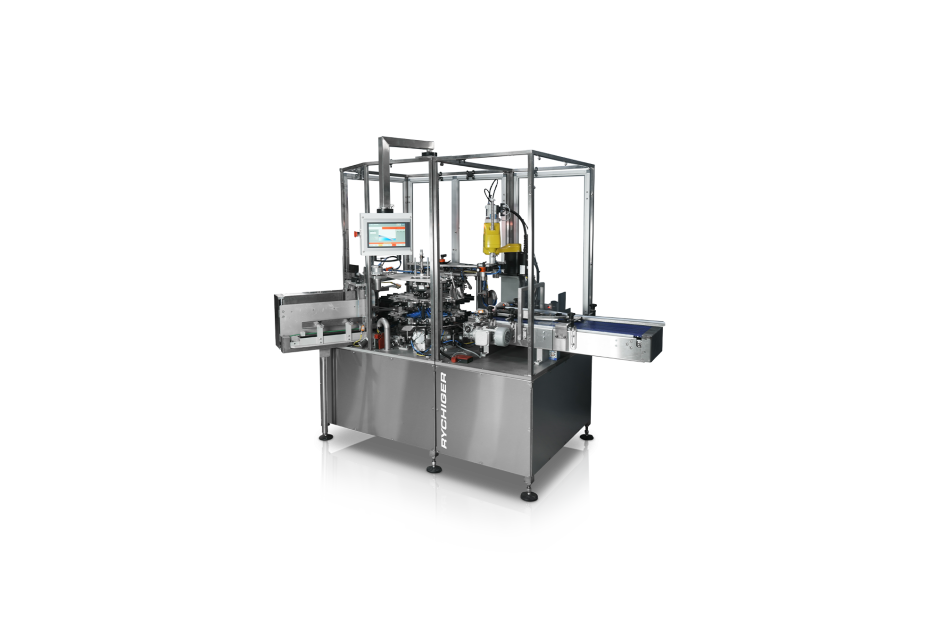

VRC-60
by Rychiger
Specifications
- Width
- 1100 mm
- Height
- 2100 mm
- Length
- 1110 mm
- Weight
- 1300 kg
- Air flow cfm
- 10
- Footprint (mm)
- 1000
- Power current (a)
- 20
- Power voltage (v)
- 230
- Air pressure psi
- 90
- Power frequency hz
- 60
- Package width max (mm)
- 101
- Package width min (mm)
- 13
- Output cartons per (hr)
- 3600
- Package height max (mm)
- 380
- Package height min (mm)
- 50
- Package length max (mm)
- 127
- Package length min (mm)
- 13
- Output cartons per (min)
- 60
- Magazine capacity cartons
- 700
Overview
The VRC-60 is a compact, high-speed cartoning machine designed for a 1x1 m footprint. It outputs up to 60 cartons per minute (3,600 per hour) with gentle handling via suction cups. Tool-free changeovers, optional labeling, and multiple sealing options make it ideal for food, beverage, and personal care packaging. It supports automatic, semi-auto, or manual operation.
Key features
- ▸Compact 1x1 m footprint
- ▸Output up to 60 cartons/min (3,600 cartons/h)
- ▸Delicate handling with suction cup mechanism
- ▸Tool-free switching between sizes
- ▸Optional labeling (QR code, RFID tag, etc.)
- ▸Runs in fully automatic, semi-auto, or manual mode
- ▸Rotary table with 12 vacuum stations
- ▸Multiple sealing options: adhesive, tuck, labels, tamper-evident stickers
- ▸Optional integrations: labelers, barcode readers, cameras, coding, weight verification
