Industrial arm / Cobot
NTP-10
by Rychiger
Specifications
- Width
- 4140 mm
- Height
- 2890 mm
- Length
- 2360 mm
- Weight
- 1100 kg
- Air flow cfm
- 10
- Power current (a)
- 20
- Power voltage (v)
- 230
- Air pressure psi
- 90
- Output trays per (hr)
- 600
- Power frequency hz
- 60
- Output trays per (min)
- 10
- Magazine capacity trays
- 700
Overview

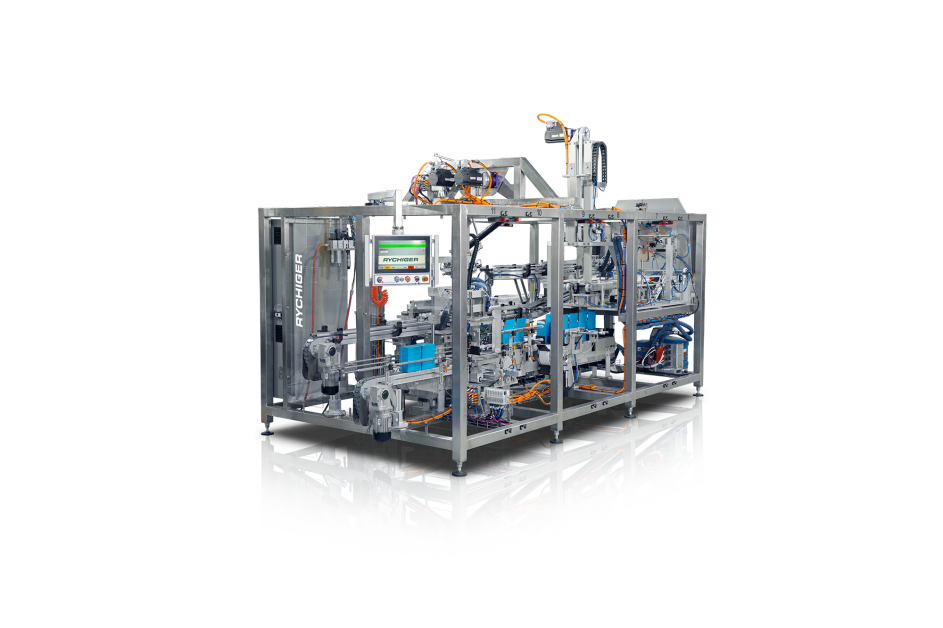

The NTP-10 is an all-in-one tray packer that forms, loads, and seals trays at up to 10 trays per minute (600 trays per hour). It features tool-free size switching, a modular sealer, and versatile loading for any packing pattern. Integrated robotics (Delta, four-axis, or six-axis) handle products via vacuum or mechanical picking. Magazine capacity is 700 trays. Machine dimensions: 2.36 x 4.14 x 2.89 m, weight 1,100 kg. Power: 230V/20A 60 Hz. Air: 90 PSI @ 10 CFM.
Key features
- ▸All-in-one solution: forming, loading, and sealing in a single installation
- ▸Up to 10 trays per minute, 600 trays per hour
- ▸Tool-free switching between sizes for maximum flexibility
- ▸Modular sealer unit for quick and compact sealing operations
- ▸Versatile loading capabilities for any packing pattern
- ▸Integrated robotics (Delta, four-axis, or six-axis) for high throughput
- ▸Vacuum or mechanical picking depending on product properties
- ▸Magazine capacity of 700 trays
