Industrial arm / Cobot
NTF-60
by Rychiger
Specifications
- Width
- 1830 mm
- Height
- 2480 mm
- Length
- 1520 mm
- Weight
- 450 kg
- Air flow cfm
- 10
- Trays per (hr)
- 3600
- Trays per (min)
- 60
- Power voltage
- 230
- Power current (a)
- 20
- Air pressure psi
- 90
- Power frequency hz
- 60
- Magazine capacity trays
- 700
Overview

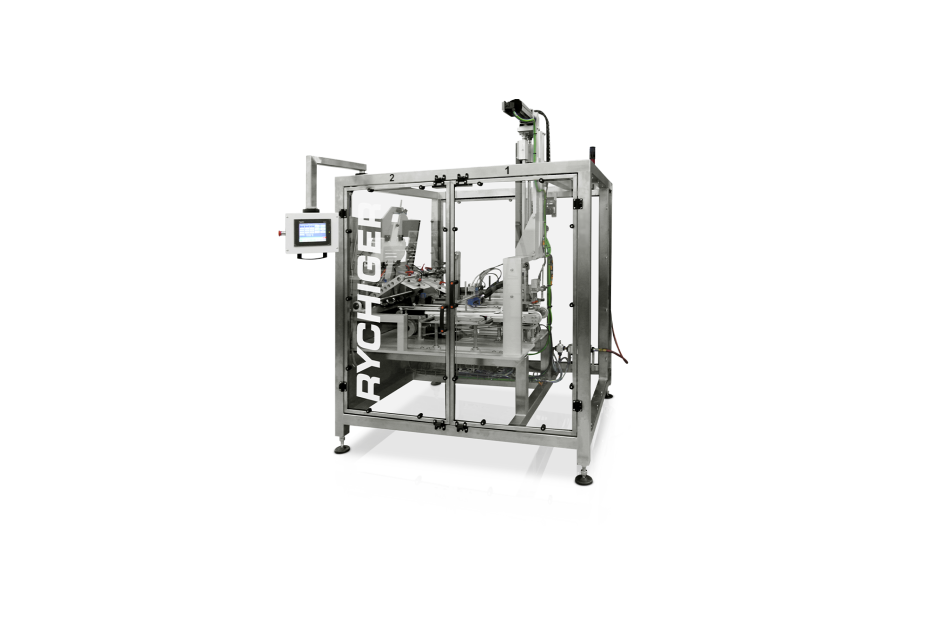

The NTF-60 is a modular tray forming machine that produces up to 60 trays per minute. It features a compact 1.5m x 2m footprint, standardized modular design, and tool-free size switching. Ideal for food, beverage, pharmaceutical, and household packaging, it forms complex tray shapes with speed and precision. The machine uses vacuum pick-and-place, automated forming and gluing, and stored recipes for quick changeovers.
Key features
- ▸Forms up to 60 trays per minute
- ▸Compact footprint 1.5m x 2m
- ▸Standardized modular design for easy integration
- ▸Tool-free switching between sizes
- ▸Programmable tray sizes for quick product changeover
- ▸Stored tray formats via control system recipes
- ▸Hygienic and robust for food and life science environments
