Industrial arm / Cobot

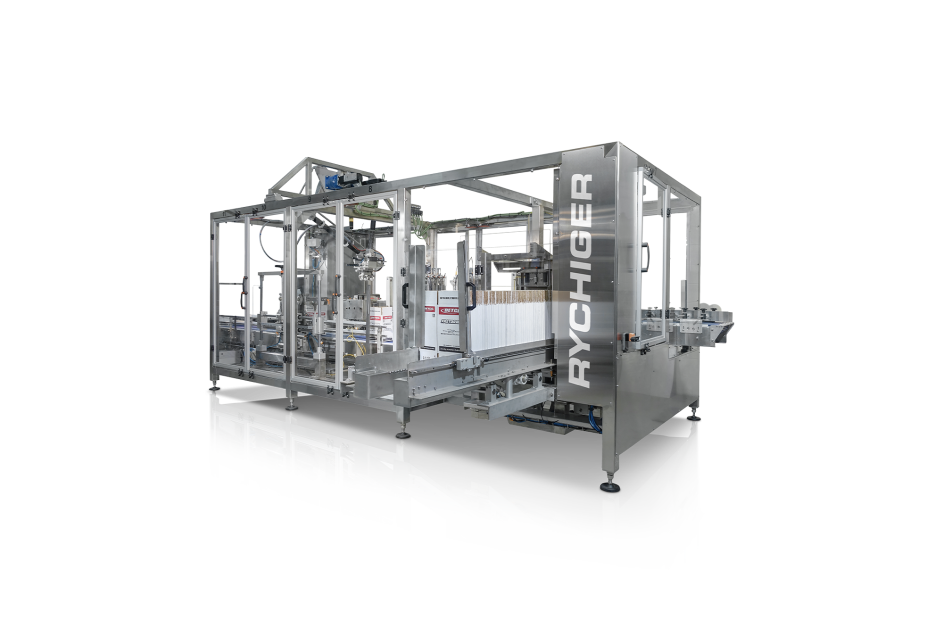

NCP-25
by Rychiger
Specifications
- Width
- 5380 mm
- Height
- 2560 mm
- Length
- 2920 mm
- Output (hr)
- 1500
- Weight
- 1800 kg
- Output (min)
- 25
- Frequency hz
- 60
- Connected load (a)
- 30
- Connected load (v)
- 230
- Compressed air cfm
- 10
- Compressed air psi
- 90
- Magazine capacity
- 150
- Package width max (mm)
- 406
- Package width min (mm)
- 127
- Package height max (mm)
- 406
- Package height min (mm)
- 100
- Package length max (mm)
- 610
- Package length min (mm)
- 152
Overview
The NCP-25 is a compact case packing machine by Rychiger, delivering up to 25 cases per minute (1500 cases/h) with a small footprint of 2m x 5m. It uses vacuum-free Pin & Dome technology for clean, low-dust operation, ideal for food, beverage, and pharmaceutical lines. Features tool-free changeovers, servo diverter, and optional integrations like barcode scanners.
Key features
- ▸Compact footprint less than 10 m²
- ▸Vacuum-free Pin & Dome case erecting
- ▸Tool-free quick size changeovers
- ▸Up to 25 cases per minute (1500 cases/h)
- ▸Magazine capacity of 150 cases
- ▸Seamless integration into automated or manual lines
- ▸Optional barcode scanners, labelers, leafleters, cameras
- ▸Servo diverter for multiple infeed lanes
