Industrial arm / Cobot

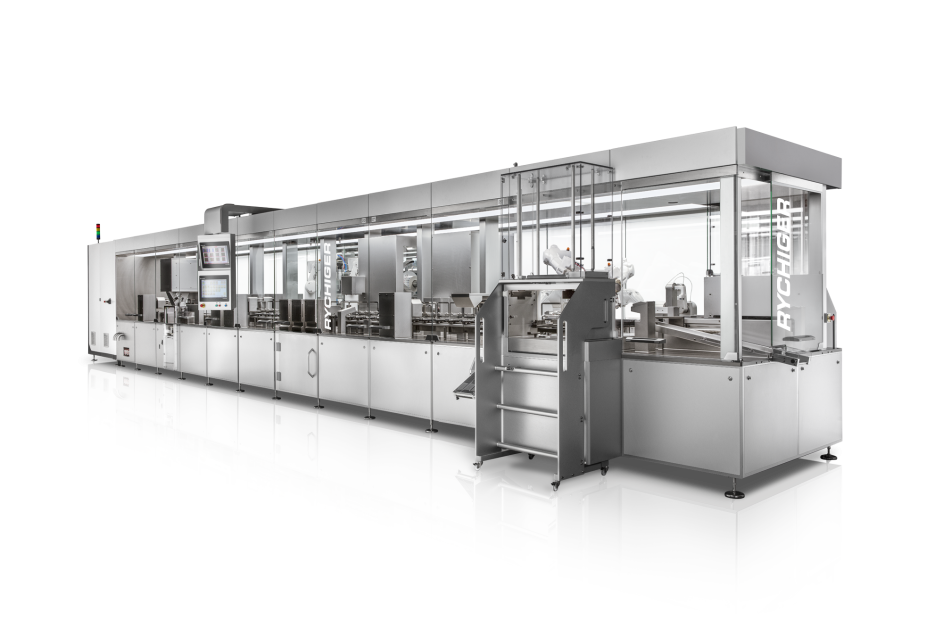

MC 1400
by Rychiger
Specifications
- Phases
- 3
- Width
- 2700 mm
- Height
- 2400 mm
- Length
- 14000 mm
- Voltage (v)
- 400
- Weight
- 1000 kg
- Lanes (count)
- 5
- Frequency hz
- 50
- Cycles per (min)
- 20
- Rated power kw
- 40
- Module weight (kg)
- 1000
- Containers per (hr)
- 6000
- Containers per (min)
- 100
- Compressed air flow l (min)
- 30
- Outer unit diameter max (mm)
- 120
- Outer unit diameter min (mm)
- 30
- Compressed air pressure bar
- 5
Overview
The MC 1400 is a high-output machine for complex IVD and POC products containing powders, liquids, lyophilized ingredients or large solids. It features an asynchronous transport system with independent magnetic carriers, DNA-cleanable design, and modular stations for filling, punching, sealing, and custom processes. Output up to 100 units/min, 5 lanes, 20 cycles/min. Drive compartment separated from processing area. Optional laminar flow available.
Key features
- ▸Handles powders, liquids, lyophilized ingredients, and large solids
- ▸Output rate up to 100 units per minute
- ▸Asynchronous transport system with independent magnetic carriers
- ▸DNA-cleanable surfaces and complete removal of extraneous DNA
- ▸Modular design supports filling, punching, sealing and custom processes
- ▸Drive compartment completely separate from processing area
- ▸Unobstructed door openings of 2 meters
- ▸Optional laminar flow for particle-free process air
