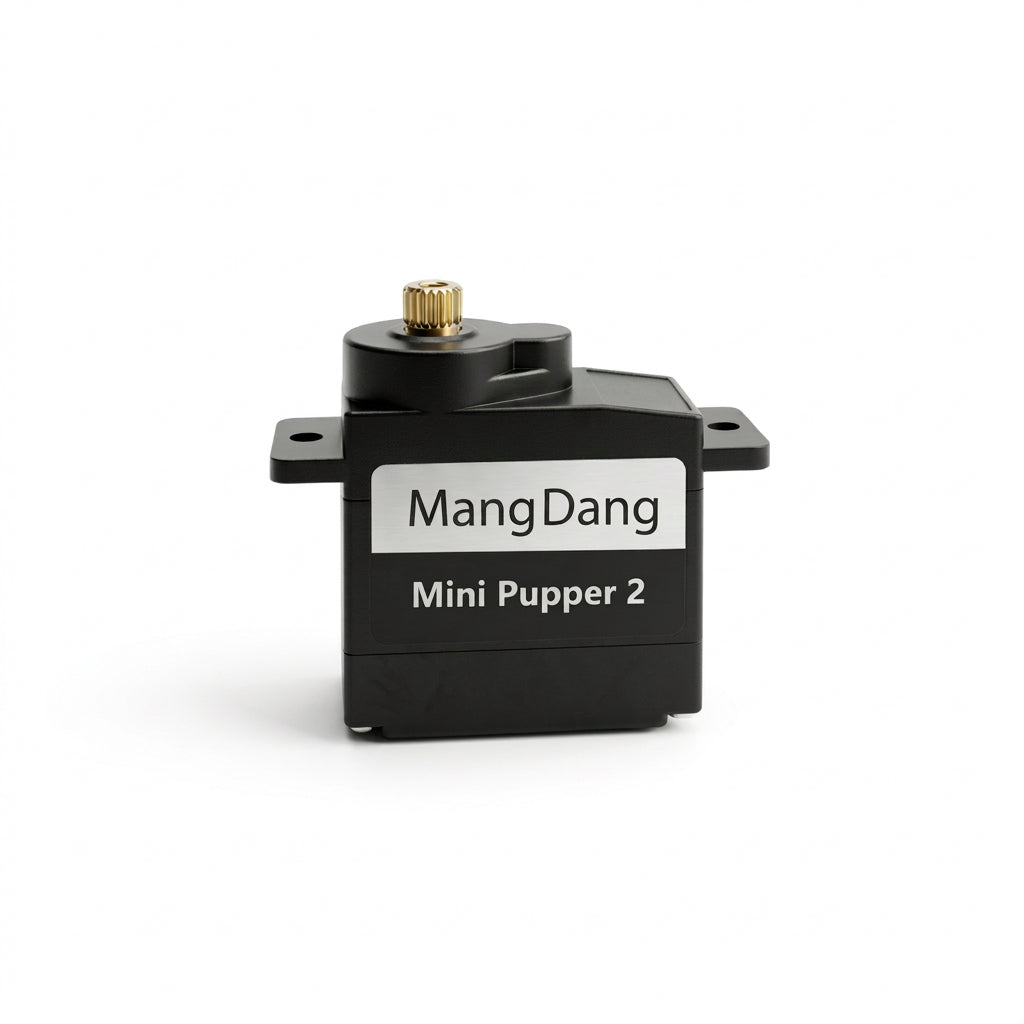

TTL Serial Bus Servo
by MangDang · $9.90
Specifications
- Bearing
- None (bushing)
- Weight g
- 12.5
- Width
- 12 mm
- Gear type
- Metal Gear
- Height
- 25.5 mm
- Horn type
- POM plastic
- Length
- 23.2 mm
- Motor type
- Coreless motor
- Limit angle
- No limit (continuous rotation)
- Case material
- ABS
- Amplifier type
- Digital (comparator)
- Command signal
- Pulse width modulation (PWM)
- Horn gear spline
- 25T
- Stall current ma
- 1200
- Dead band width us
- 2
- Rated torque kg (cm)
- 1.15
- Running degree (deg)
- 180
- Weight tolerance g
- 1
- Rotating direction
- CCW (from 1500 µs to 2400 µs)
- No load speed voltage (v)
- 6
- Peak stall torque kg (cm)
- 3.5
- Rated torque voltage (v)
- 6
- Pulse width range max us
- 2500
- Pulse width range min us
- 500
- Stall current voltage (v)
- 6
- Connector wire length (mm)
- 200
- Stop position neutral us
- 1500
- No load speed sec per60 (deg)
- 0.1
- Running current voltage (v)
- 6
- Peak stall torque voltage (v)
- 6
- Running current at no load ma
- 170
- Operating voltage range max (v)
- 7.4
- Operating voltage range min (v)
- 4.8
- Storage temperature range max c
- 80
- Storage temperature range min c
- -30
- Running degree pulse width max us
- 2400
- Running degree pulse width min us
- 600
- Operating temperature range max c
- 70
- Operating temperature range min c
- -15
Overview
The TTL Serial Bus Servo (3.5 kg·cm with position feedback) features an ABS case, metal gear, and coreless motor. It operates at 4.8–7.4 V with a pulse width range of 500–2500 µs. Peak stall torque is 3.5 kg·cm at 6 V, no-load speed 0.1 sec/60° at 6 V. Weight 12.5 g, dimensions 23.2×12×25.5 mm. Includes 200 mm connector wire.
Key features
- ▸ABS case, metal gear, coreless motor
- ▸Position feedback via TTL serial bus
- ▸Peak stall torque 3.5 kg·cm @ 6V
- ▸No-load speed 0.1 sec/60° @ 6V
- ▸Operating voltage 4.8–7.4 V
- ▸Pulse width range 500–2500 µs
- ▸Continuous rotation (no limit angle)
- ▸Weight 12.5 g ± 1 g, size 23.2×12×25.5 mm
