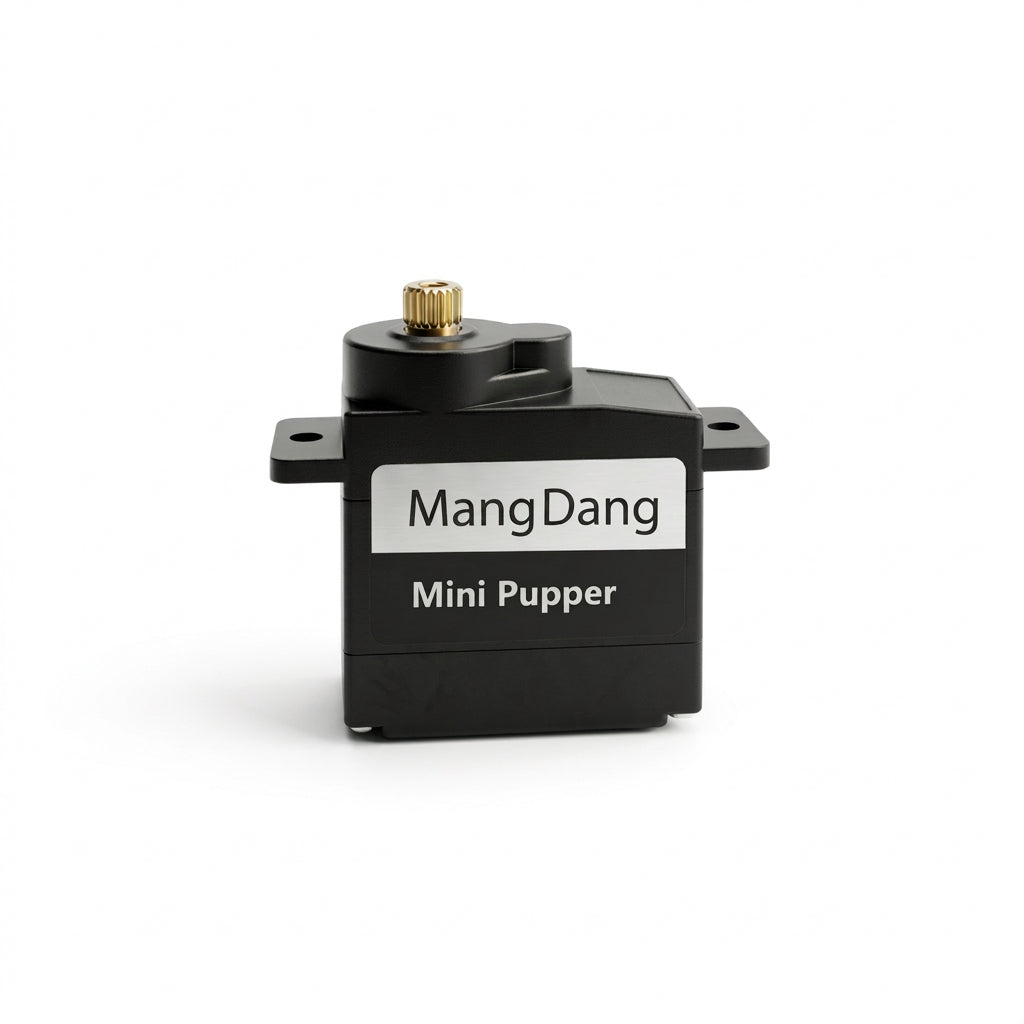

Mini Pupper Digital Servo
由 MangDang · $9.60
规格参数
- Bearing
- None (bushing)
- Weight g
- 12.5
- 宽度
- 12 mm
- Gear type
- Metal Gear
- 高度
- 25.5 mm
- Horn type
- POM plastic
- 长度
- 23.2 mm
- Motor type
- Coreless motor
- Limit angle
- No limit (continuous rotation)
- Case material
- ABS
- Amplifier type
- Digital (comparator)
- Command signal
- Pulse width modulation (PWM)
- Horn gear spline
- 25T
- Stall current ma
- 1200
- Dead band width us
- 2
- Pulse width max us
- 2500
- Pulse width min us
- 500
- Rated torque kg (cm)
- 1.15
- Storage temp max c
- 80
- Storage temp min c
- -30
- Running degree (deg)
- 180
- Weight tolerance g
- 1
- Neutral position us
- 1500
- Operating temp max c
- 70
- Operating temp min c
- -15
- Rotating direction
- CCW (from 1500 µs to 2400 µs)
- No load speed sec60deg
- 0.1
- No load speed voltage (v)
- 6
- Peak stall torque kg (cm)
- 3.5
- Rated torque voltage (v)
- 6
- Operating voltage max (v)
- 7.4
- Operating voltage min (v)
- 4.8
- Stall current voltage (v)
- 6
- Connector wire length (mm)
- 200
- Running current no load ma
- 170
- Peak stall torque voltage (v)
- 6
- Running degree pulse max us
- 2400
- Running degree pulse min us
- 600
- Running current no load voltage (v)
- 6
产品介绍
Mini Pupper数字伺服是一款具有位置反馈的数字伺服电机，专为机器人设计。它具有金属齿轮、无旋转限制和无滚珠轴承（衬套）的特点。喇叭齿轮花键为25T，采用POM塑料喇叭。工作电压4.8–7.4V，6V时峰值堵转扭矩3.5kg·cm，6V时空载速度0.1秒/60°。重量12.5g±1g，尺寸23.2×12×25.5mm。
主要特点
- ▸带位置反馈的数字舵机
- ▸金属齿轮，无旋转限制
- ▸无滚珠轴承（轴套）
- ▸舵机臂齿轮花键25T，POM塑料舵机臂
- ▸空心杯电机
- ▸工作电压范围4.8 – 7.4 V
- ▸峰值堵转扭矩3.5 kg·cm @ 6V
- ▸空载速度0.1秒/60° @ 6V
- ▸重量12.5 g ± 1 g
- ▸尺寸23.2 x 12 x 25.5 mm
