Tracks

Overview

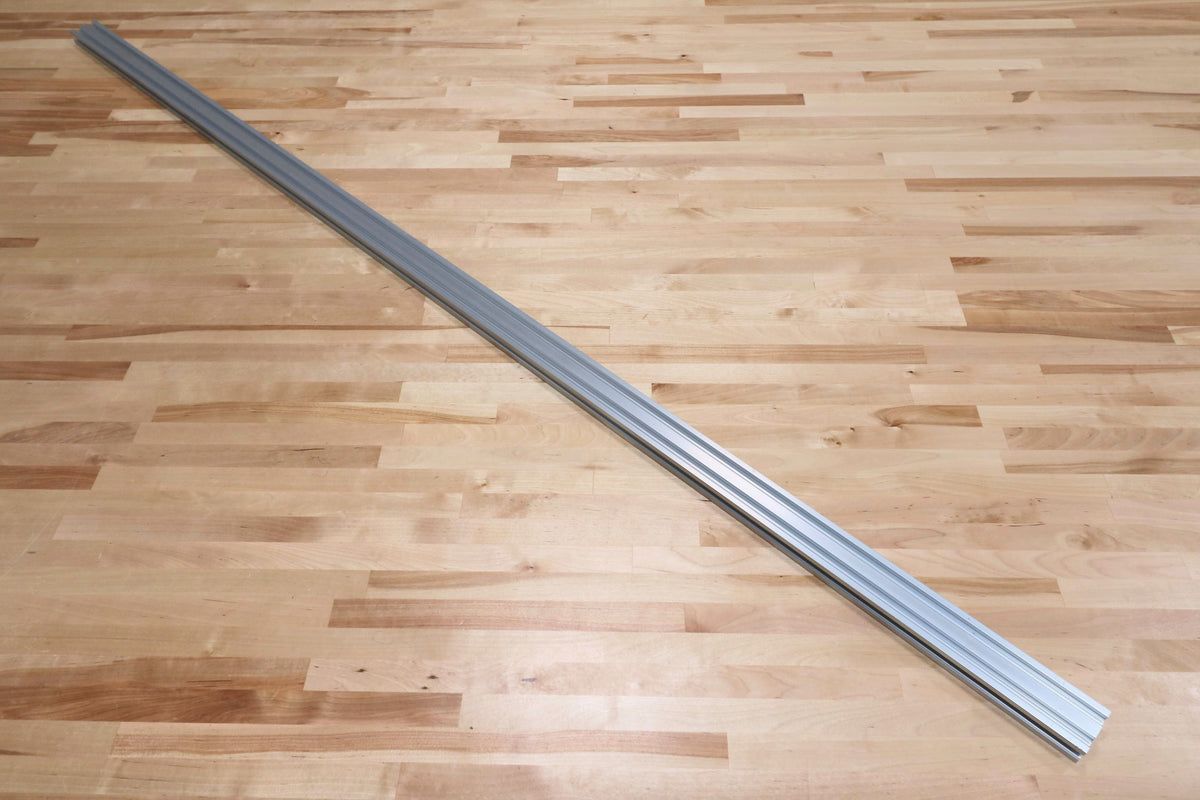

Track extrusions are the primary structural component of FarmBot's tracks sub-assembly. Made from 6063-T5 aluminum with V-Slot profile (20mm x 40mm), they allow gantry v-wheels to roll along for x-direction movement and can be combined end-to-end.

Key features

• ▸Track extrusions, primary structural component of tracks sub-assembly
• ▸V-Slot profile (20mm x 40mm)
• ▸1500mm length, combinable end-to-end for longer tracks
• ▸Gantry v-wheels roll along track extrusions for x-direction movement
• ▸Sand blasted and clear anodized surface treatment
• ▸Sold individually; four required for standard FarmBot, eight for XL
