OtherSold out

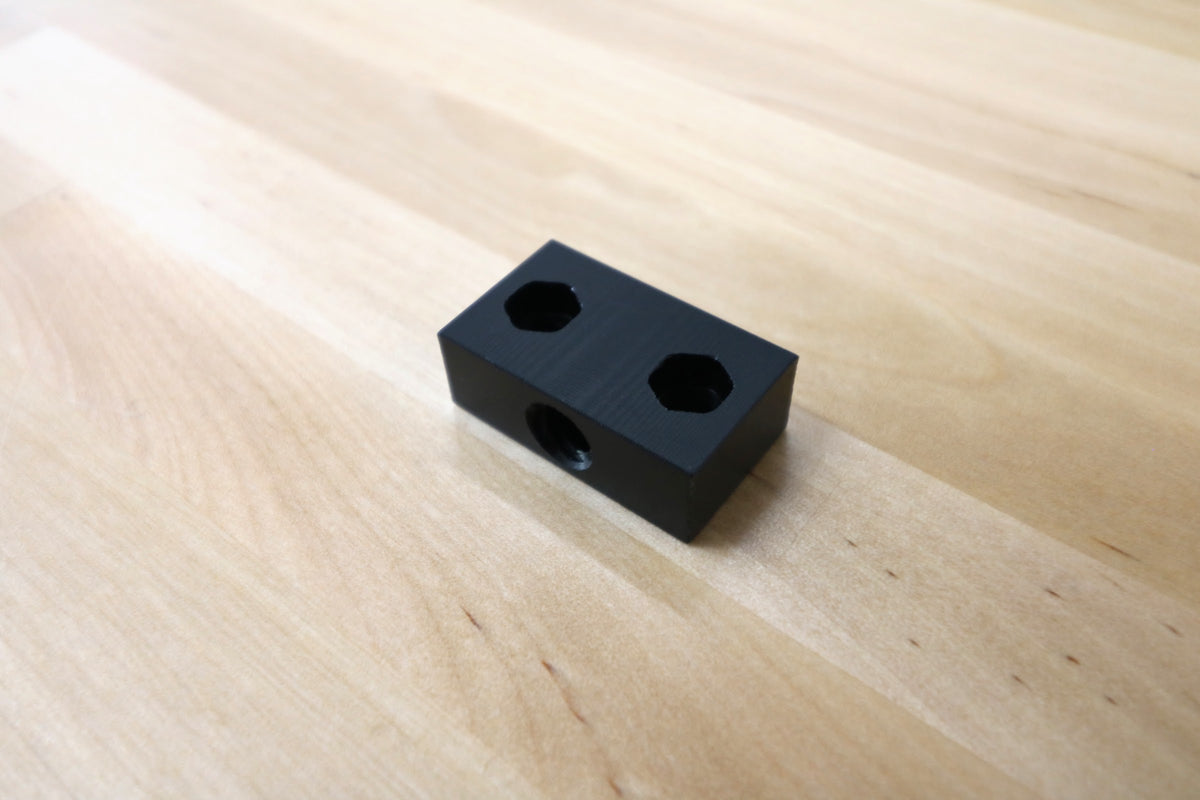

Leadscrew Block
by FarmBot · $700.00
Specifications
- Lead (mm)
- 8
- Pitch (mm)
- 2
- Width
- 20 mm
- Length
- 34 mm
- Price u s d
- 700
- Weight
- 10 kg
- Thread type
- Tr8*8-2p (4 starts)
- Thickness (mm)
- 12
- Mounting hole type
- M5
- Material composition
- Delrin
- Mounting hole spacing (mm)
- 20
Overview
Delrin block component that attaches to the cross-slide plate, enabling leadscrew motion through it for Z-direction movement in FarmBot systems. Precision-engineered with Tr8*8-2p threads and M5 mounting configuration.
Key features
- ▸Delrin material construction
- ▸Attaches to cross-slide plate for Z-direction movement
- ▸Tr8*8-2p thread specification with 4 starts
- ▸2mm pitch, 8mm lead design
- ▸M5 mounting holes spaced 20mm apart
