Genesis v1.3+ Cross-Slide Plate
by FarmBot · $25.00
Specifications
- Mass (kg)
- 0.334
- Volume cm3
- 122.7
- Thickness (mm)
- 5
- Material type
- 6061 Aluminum
- Surface treatments
- Tumble polished, Sand blasted, Clear anodized
Overview

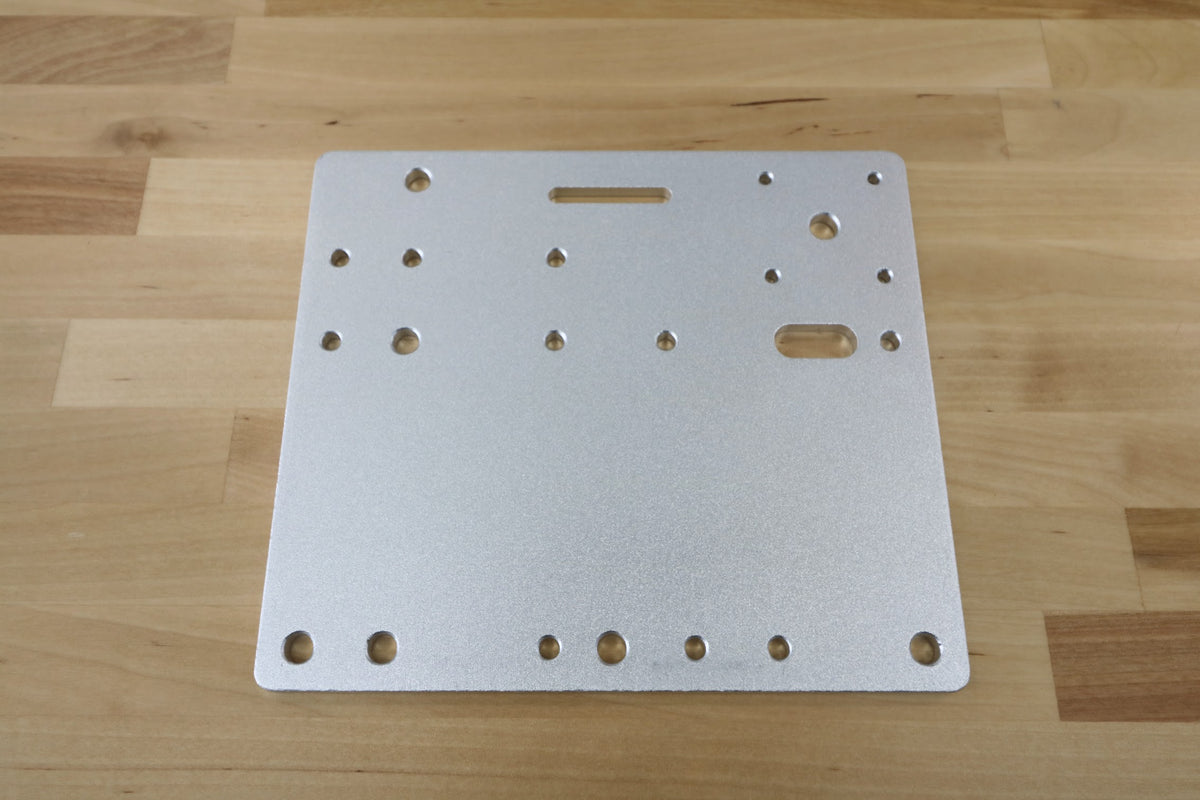

Cross-slide plate component for Genesis v1.3+ FarmBot systems. Features holes for mounting y-axis motor, leadscrew block, long cable carrier mount, and v-wheels. Constructed from 5mm thick 6061 aluminum with tumble polished, sand blasted, and clear anodized surface treatments.
Key features
- ▸5mm thick 6061 aluminum construction
- ▸Mounting holes for y-axis motor, leadscrew block, long cable carrier mount
- ▸Variety of v-wheel mounting options
- ▸Tumble polished, sand blasted, and clear anodized finish
- ▸0.334 kg mass with 122.7 cm³ volume
