Genesis v1.6+ Vacuum Pump Cable
by FarmBot · $25.00 - $30.00
Specifications
- Wire gauge
- 20AWG-2C
- Rated voltage (v)
- 300
- Weight genesis g
- 225
- Wire outer color
- Black
- Wire inner colors
- White and black
- Weight genesis x l g
- 304
- Cable length genesis m
- 3.6
- Cable length genesis x l m
- 5.1
- Connector type version1 vacuum end
- Three 3/16" insulated quick-connect terminals
- Connector type version2 vacuum end
- Three 3/16" insulated quick-connect terminals
- Connector type version3 vacuum end
- Small 3-pin 2.54mm pitch black plug (Molex Part 50579403)
- Connector type version1 farmudino end
- Large 3-pin black plug (Molex Part 2004561213)
- Connector type version2 farmudino end
- Small 3-pin 2.54mm pitch black plug (Molex Part 50579403)
- Connector type version3 farmudino end
- Small 3-pin 2.54mm pitch black plug (Molex Part 50579403)
Overview

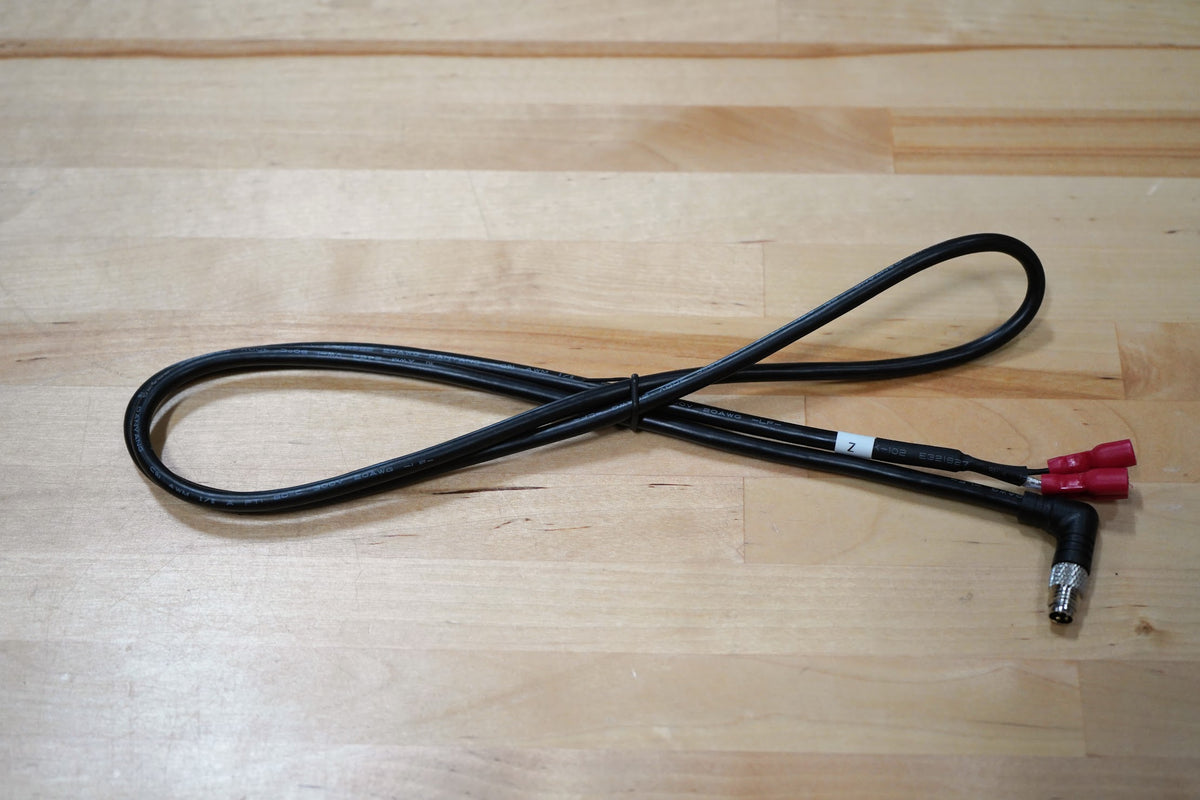

Two-part cable for Genesis and Genesis XL v1.6+ systems connecting vacuum pump with EMI filter to Farmduino. Features 90-degree waterproof screw-together connector. Available in 3.6m (Genesis) or 5.1m (Genesis XL) lengths with three version options for different connector types.
Key features
- ▸Two-part cable connects vacuum pump with EMI filter to v1.6+ Farmduino
- ▸90-degree waterproof screw-together connector between Y-axis and Z-axis sections
- ▸3.6m length for Genesis or 5.1m for Genesis XL
- ▸Three version options with different connector configurations
- ▸20AWG-2C shielded stranded copper wire rated at 300V
- ▸Compatible with multiple Farmduino and vacuum pump connector types
