Genesis v1.3+ Motor Cables
by FarmBot · $20.00 - $35.00 (varies by axis variant)
Specifications
- Cores
- 4
- Gauge
- 18
- Weight y_g
- 94
- Weight z_g
- 140
- Weight x1_g
- 30
- Weight x2_g
- 72
- Cable length_ y_m
- 2.7
- Cable length_ z_m
- 2.6
- Cable length_ x1_m
- 0.7
- Cable length_ x2_m
- 2.3
- Motor connector pins
- 6
- Cable length_ z_extra_m
- 1.8
- Farmduino connector pins
- 4
- Farmduino connector pitch (mm)
- 2.54
Overview

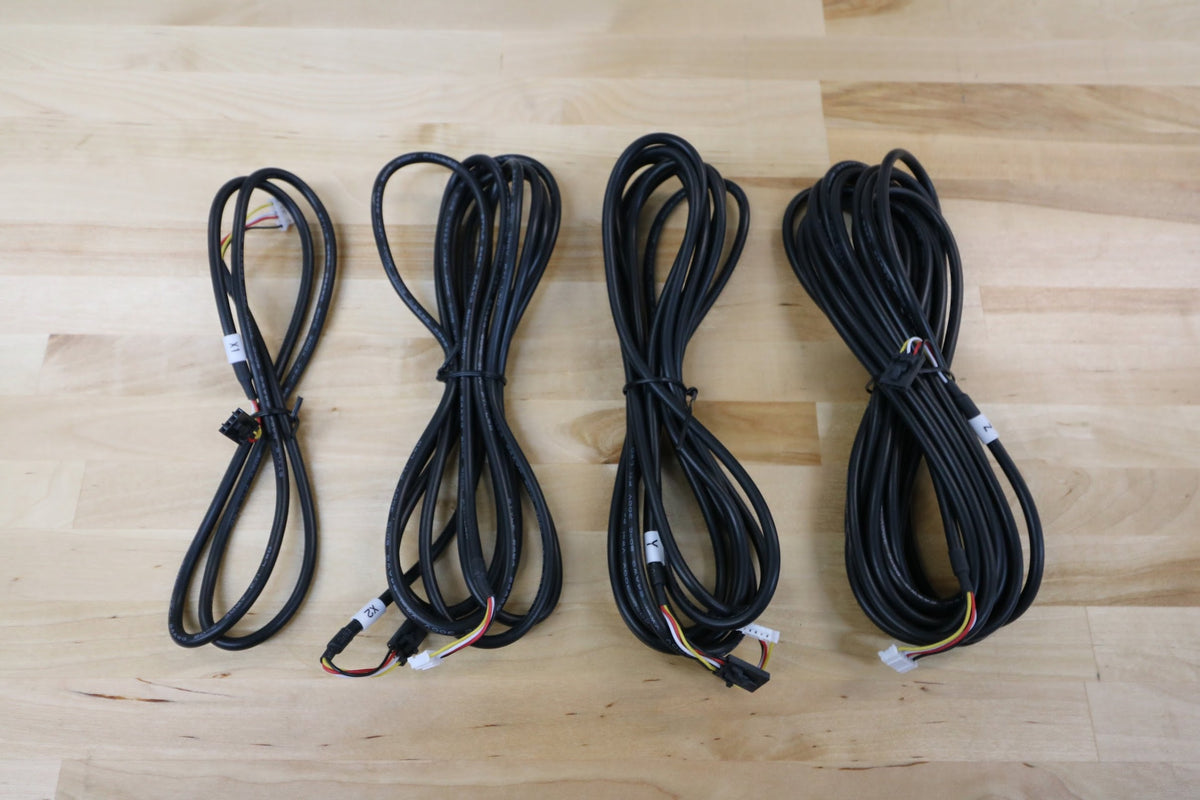

Motor cables for Genesis v1.3+ farming robot systems. Four-wire cables in multiple lengths connect NEMA 17 stepper motors to the Farmduino controller. Includes X1, X2, Y, and Z axis options with 18 gauge wiring and standardized connectors.
Key features
- ▸4-wire cables connect NEMA 17 stepper motors to Farmduino
- ▸Multiple axis options: X1 (0.7m), X2 (2.3m), Y (2.7m), Z (2.6m + 1.8m)
- ▸6-pin motor connector with 4 pins used
- ▸2.54mm pitch 4-pin dupont connector with locking tab for Farmduino
- ▸18 gauge wiring
- ▸Compatible with Genesis v1.3+ (1.5m x 3m machines, not Genesis XL)
- ▸Black outer color
