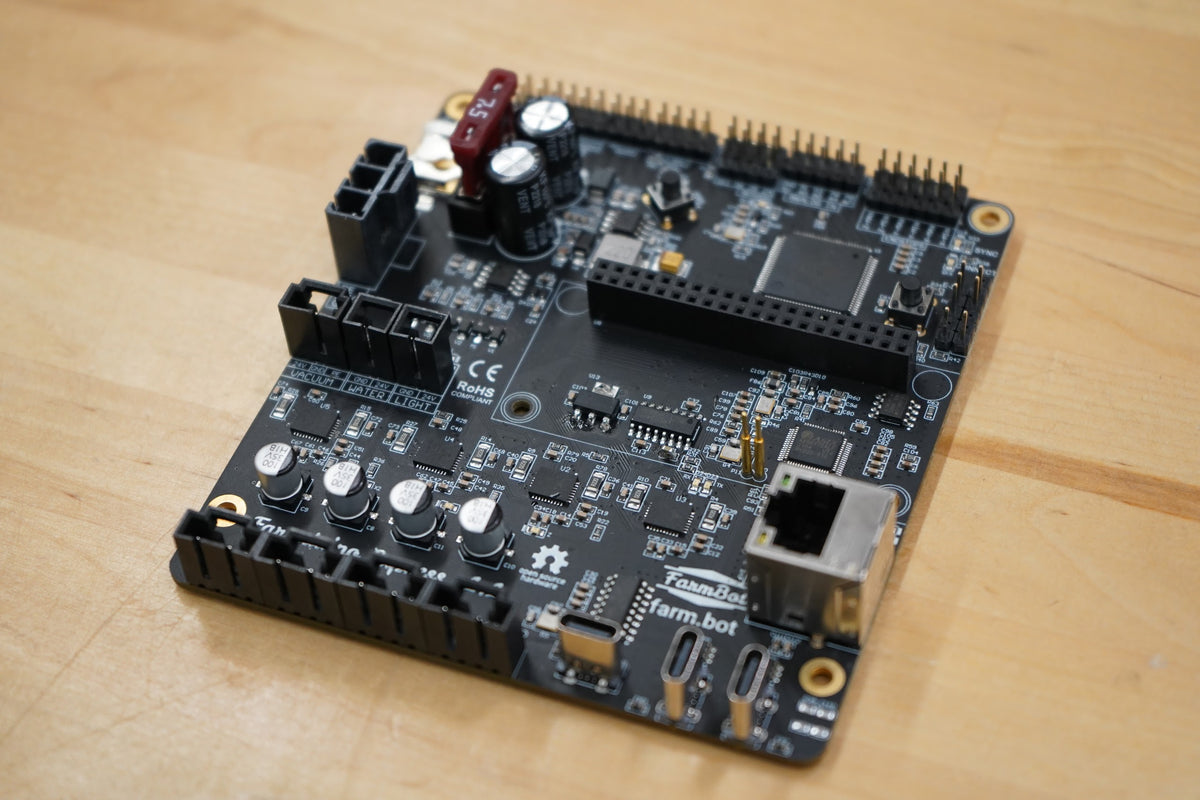

Farmduino Express v1.1
by FarmBot · $145.00
Specifications
- Weight g
- 100
- Usb type c
- 2
- Peripherals
- 3
- Input voltage (v)
- 24
- Stepper drivers
- 4x Trinamic TMC2130
- Camera port (count)
- 2
Overview
The Farmduino Express v1.1 is a control board that receives G-code commands from the Raspberry Pi Zero 2 W to drive motors, read sensors, and activate peripherals. It features 4 stepper drivers, real-time clock, integrated Ethernet, and dual camera/USB ports.
Key features
- ▸Receives G-code commands from Raspberry Pi Zero 2 W
- ▸4x Trinamic TMC2130 stepper drivers
- ▸Moves motors, reads sensors, and activates peripherals
- ▸Real-time clock included
- ▸Integrated Ethernet port
- ▸Two camera ports for connectivity
- ▸Two USB Type-C ports
- ▸24V input voltage
- ▸3 peripheral connections
