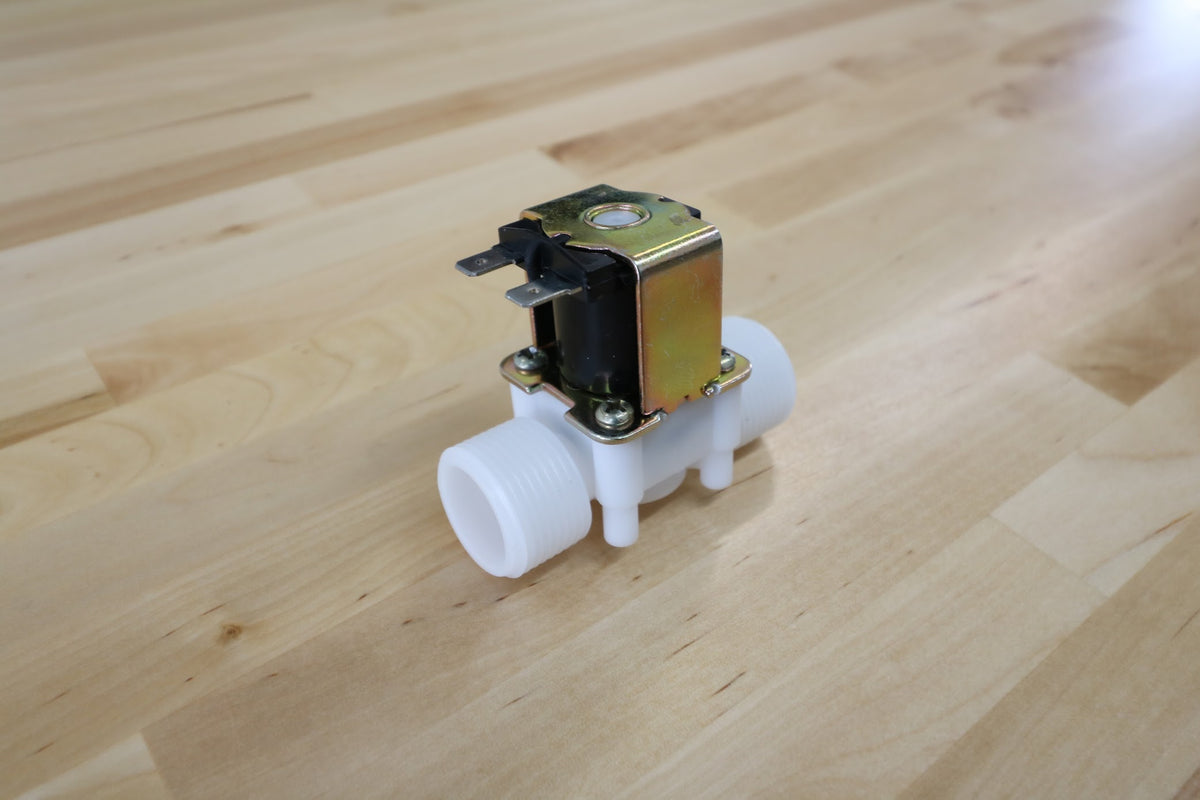

24v Solenoid Valve
by FarmBot · $15.00
Specifications
- Weight g
- 127
- Inlet n p t
- 3/4" NPT
- Outlet n p t
- 3/4" NPT
- Current drawm (a)
- 160
- Flow direction
- One-way
- Input voltage (v)
- 24
- Operation mode
- Normally closed
- Power consumption (w)
- 3.84
- Working pressure mpa max
- 0.8
- Working pressure mpa (min)
- 0.02
- Working pressure psi max
- 116
- Working pressure psi (min)
- 3
Overview
24V solenoid valve that controls water flow from garden hose to FarmBot tubing. Features 3/4" NPT inlet/outlet, normally closed operation, working pressure 0.02-0.8 MPa, one-way flow direction, 24V input, 160mA draw, 3.84W consumption.
Key features
- ▸24V solenoid valve for water flow control
- ▸Compatible with Genesis v1.4+ and Express v1.0+ kits
- ▸Inlet and outlet: 3/4" NPT (National Pipe Thread)
- ▸Normally closed operation
- ▸Working pressure range: 0.02 to 0.8 MPa (3 to 116 PSI)
- ▸One-way flow direction with arrow indicator
- ▸Low power consumption: 3.84 Watts at 160mA
