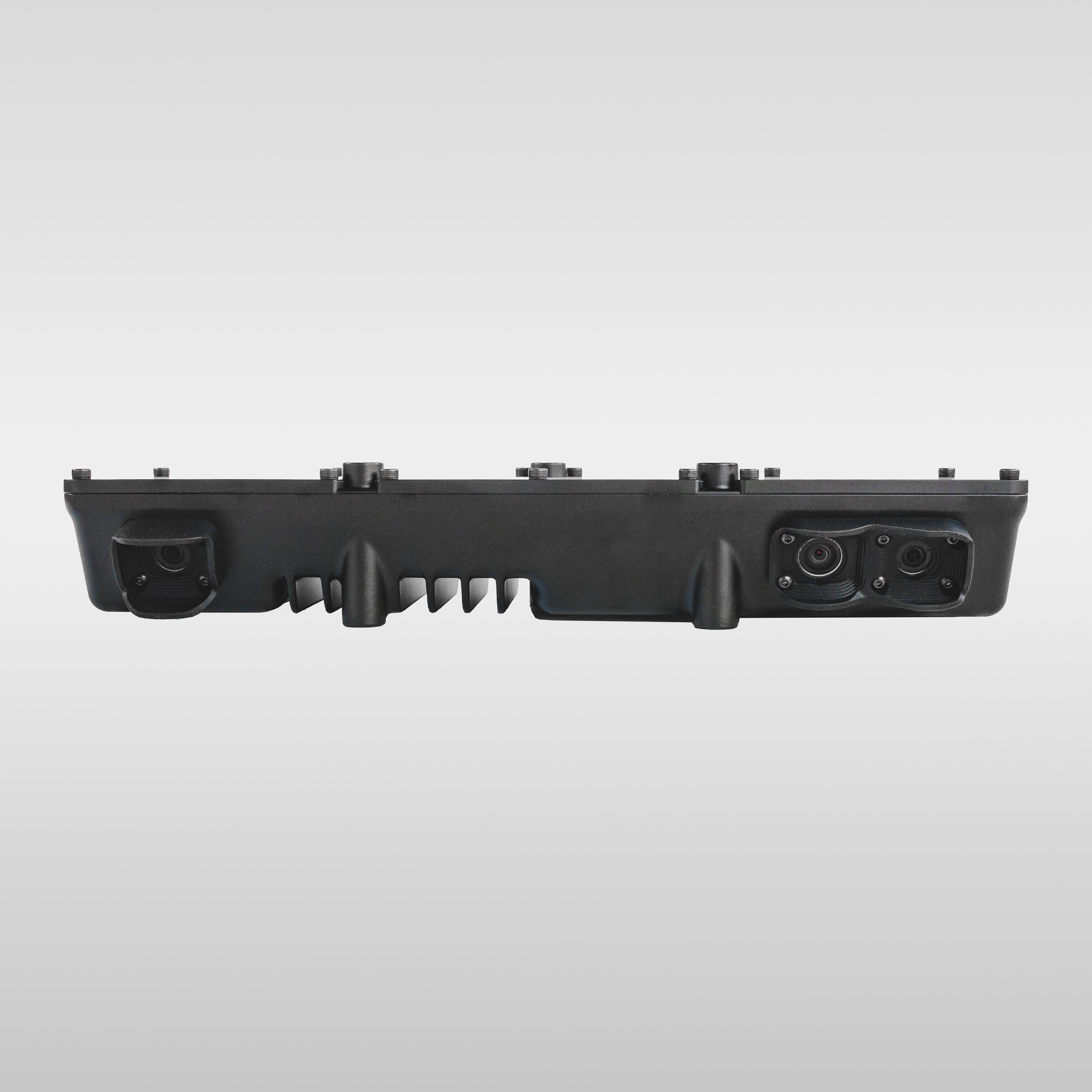

MultiSense® S27
by Carnegie Robotics · 1995.00 USD
Specifications
- Ram gb
- 4
- Gpu m hz
- 500
- Ip rating
- IP67
- Price usd
- 1995
- Range max m
- 30
- Range min m
- 1.4
- Baseline (cm)
- 27
- Range max ft
- 98.4
- Range min ft
- 4.6
- Voltage max (v)
- 36
- Voltage min (v)
- 9
- Processor g hz
- 1.2
- Stereo fov (deg)
- 24
- Fov vertical (deg)
- 54
- Fov horizontal (deg)
- 91
- Operating temp max c
- 80
- Operating temp min c
- -40
- Resolution width px
- 1920
- Processor core (count)
- 4
- Resolution height px
- 1280
- Rgb resolution width px
- 1920
- Rgb resolution height px
- 1188
Overview
The MultiSense S27 is a ruggedized stereo sensor designed for harsh outdoor environments. It features advanced vision processing for challenging conditions like dust, fog, and smoke. With a 24° below-horizontal view angle and 1.4m-30m range, it provides excellent surroundings awareness when mounted high. Onboard processing eliminates extra peripherals. Includes one-year warranty.
Key features
- ▸27 cm stereo baseline
- ▸IP67 rated, ruggedized for harsh environments
- ▸-40°C to 80°C operating temperature
- ▸1.2 GHz quad-core ARM processor with 4 GB DDR4 RAM
- ▸Monochrome imagers 1920x1280 global shutter, RGB 1920x1188 rolling shutter
- ▸91°H x 54°V FOV, 24° stereo FOV below horizontal
- ▸Range 1.4 m to 30 m (4.6 to 98.4 ft)
- ▸Onboard processing eliminates need for extra peripherals
- ▸One-year standard warranty included
