Duro® Inertial RTK Pack - Calian Antenna
by Carnegie Robotics · 6,949.00 USD
Specifications
- Ip rating
- IP67
- Price usd
- 6949
- Velocity accuracy (ms)
- 0.08
- Horizontal accuracy m
- 0.4
- Operating temperature max c
- 167
- Operating temperature min c
- -40
Overview

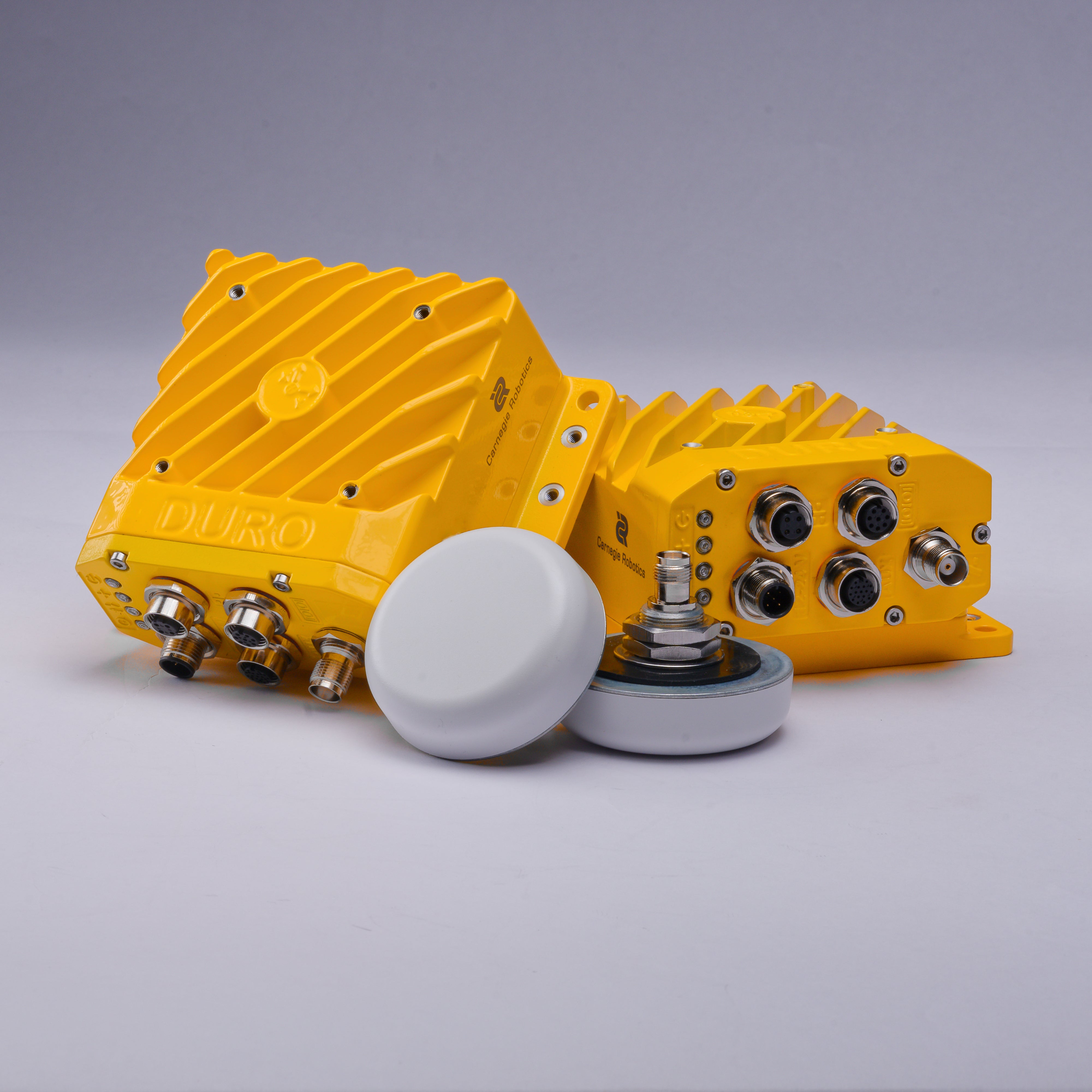

Duro® Inertial RTK Pack combines a multi-band, multi-constellation centimeter-accurate GNSS inertial navigation solution (INS) in a ruggedized, compact form factor. It is an enclosed dual-frequency GNSS receiver with an integrated inertial measurement unit for continuous centimeter-accurate positioning in harsh environments. Designed for long-term outdoor deployments with military ruggedization at a breakthrough price.
Key features
- ▸Multi-band, multi-constellation centimeter-accurate GNSS inertial navigation solution (INS)
- ▸Integrated dual-frequency GNSS receiver with inertial measurement unit for continuous centimeter-accurate positioning
- ▸Military ruggedization with IP67 rating and -40°C to 167°C operating temperature
- ▸0.4 m horizontal accuracy and 0.08 m/s velocity accuracy
- ▸Includes 2x TW3972 Tri-Band + L-Band GNSS antennas and 2x 4-meter antenna cables
