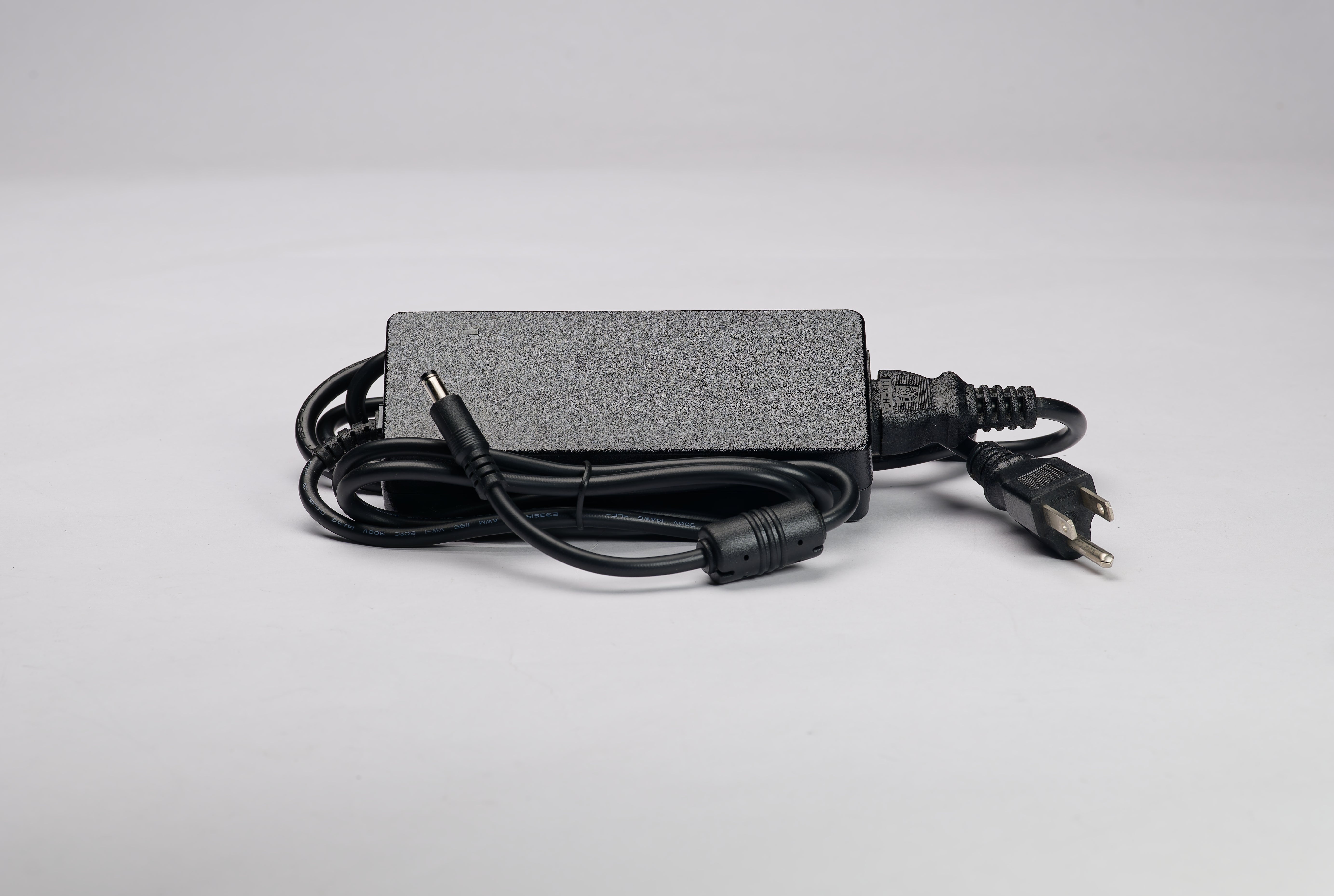

CardShark Development Power Supply Kit
by Carnegie Robotics · 379.00 USD
Specifications
- Power (w)
- 90
- Voltage (v)
- 15
- Output current (a)
- 6
- Input voltage max (v)
- 264
- Input voltage min (v)
- 90
- Ac power cord length m
- 2
- Input frequency max hz
- 63
- Input frequency min hz
- 47
Overview
This kit includes everything needed to power a CardShark from a standard 120V US wall outlet. The included 15V, 90W power supply features a standard IEC320-C14 power inlet and can accept a universal input of 90-264VAC at 47-63Hz. Non-US IEC power cords are not included. Includes AC power cord (NEMA 5-15P to C13, 2m), AC/DC adapter (15V 6A DC output with 5.5x2.5mm male barrel plug), and desktop DC power cable assembly (5.5x2.5mm female barrel jack to Nett Warrior female receptacle).
Key features
- ▸Includes everything needed to power a CardShark from a standard 120V US wall outlet
- ▸15V, 90W power supply with standard IEC320-C14 power inlet
- ▸Accepts universal input of 90-264VAC at 47-63Hz
- ▸Includes AC power cord (NEMA 5-15P to C13, 2m)
- ▸Includes AC/DC adapter (15V 6A DC output with 5.5x2.5mm male barrel plug)
- ▸Includes desktop DC power cable assembly (5.5x2.5mm female barrel jack to Nett Warrior female receptacle)
