待审核Stock adequate! Ready to ship

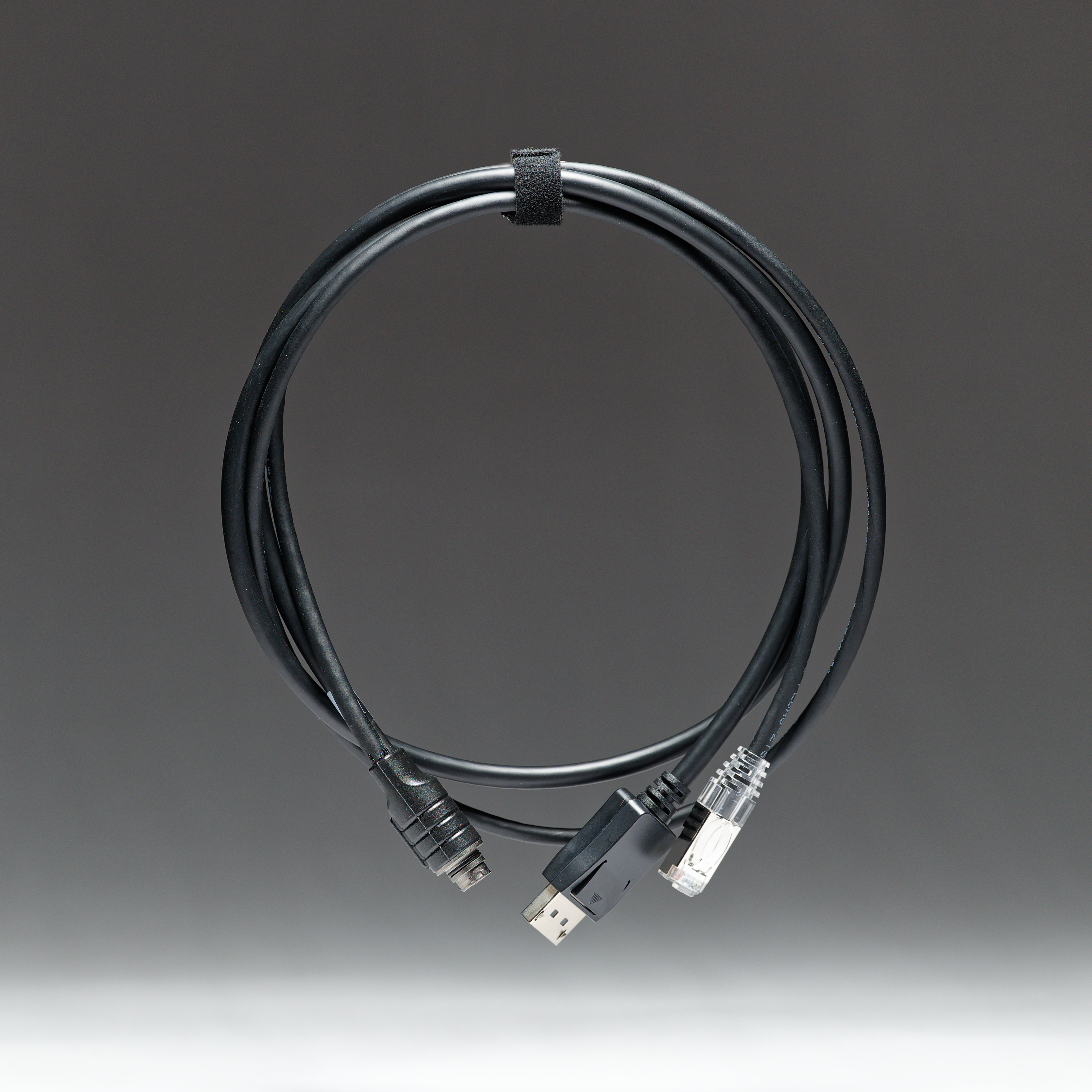

CardShark PAN+ to RJ45 and DisplayPort Cable, 1m
由 Carnegie Robotics · 618.00 USD
规格参数
- Length m
- 1
- Price usd
- 618
产品介绍
此分线电缆用于将CardShark的PAN+端口连接至显示器，同时访问千兆以太网端口。它将PAN+端口分别分成一个公头RJ45（8P8C）连接器和一个公头DisplayPort连接器。A端：ODU AMC HD公头，27针，A编码（浅棕色）B端：RJ45（8P8C）公插头 + DisplayPort公插头
主要特点
- ▸将CardShark PAN+端口分拆为RJ45和DisplayPort
- ▸同时访问千兆以太网和显示器
- ▸A端：ODU AMC HD公头，27针，A编码（浅棕色）
- ▸B端：RJ45（8P8C）公插头 + DisplayPort公插头
- ▸1米线缆长度
